BC2-10
LTE Cat1.bis
Slim Modem
The Bridgecom BC2-10 is a LTE Cat1.bis IoT modem platform based on 3GPP R13, designed for the massive IoT market. Engineered for applications like smart metering, asset tracking, intelligent sensing, real-time device monitoring and predictive maintenance.
The BC2-106 slim modem chip delivers reliable LTE connectivity with lowest power, compact form factor, and minimal cost. Its high level of integration simplifies device design for seamless and smart IoT deployments—making it ready for scale.

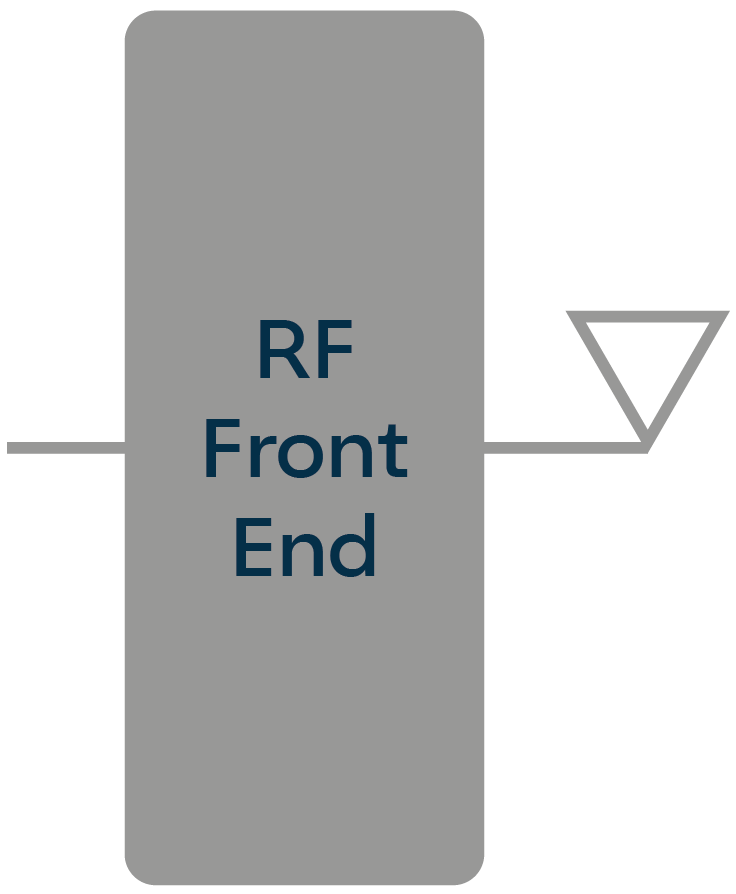

Block Diagram
Key Features
Chipset
-
3GPP Release 14, FDD/TDD LTE Cat 1.bis
-
1.4 / 3 / 5 / 10 / 15 / 20 MHz bandwidth
-
Up to DL 10Mbps, UL 5Mbps
-
RF frequency range from 450MHz to 2.7GHz
-
Support up to 12 RX ports and 4 TX ports
-
ARM Processor up to 384MHz
-
Peripheral interfaces incl. USB / I2C / SPI / UART / MIPI RFFE
-
Low Power Consumption with PSM / eDRX mode
-
Support WIFI scan and essential application features
-
BC2-106 with integrated RF and PMU
-
4Mbit PSRAM and 4Mbit Nor Flash integrated via SIP
-
Qualified and in volume shipment
